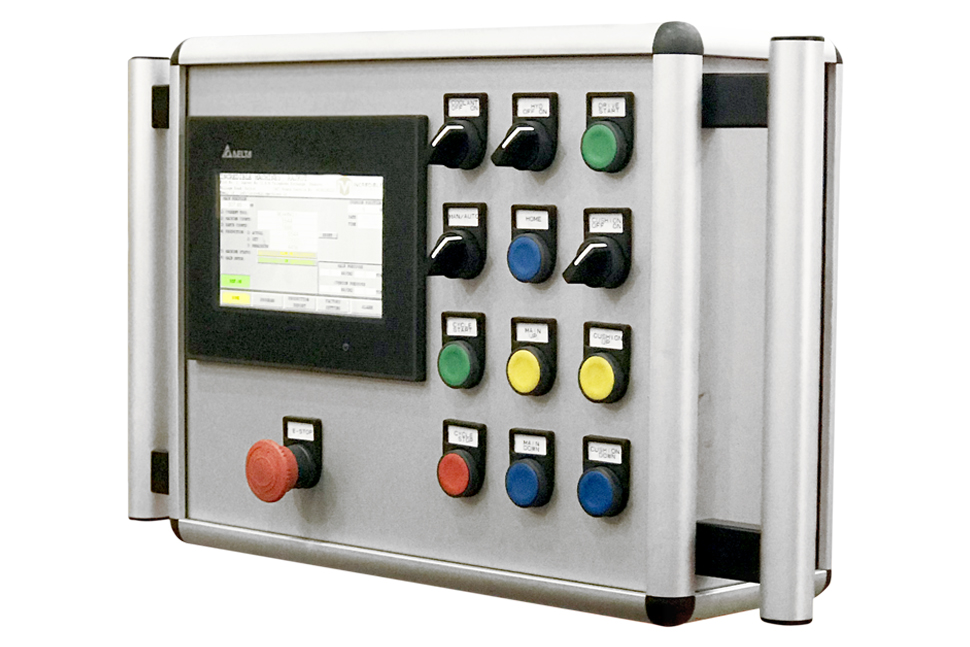

HMI Cabinet has been designed for universal requirement. There is wide range of standard sizes available. The HMI Cabinet offers a solution for every application or can be easily customized to suite specific requirements.
Technical Specifications
Design:
Modular Structure
Material:
Aluminium Extrusion Anodized Profile, ACP Sheet & Aluminium Plate, SS Hinge
Lock:
Cam Lock
Gasket:
Polyurethane (PU) Gasket

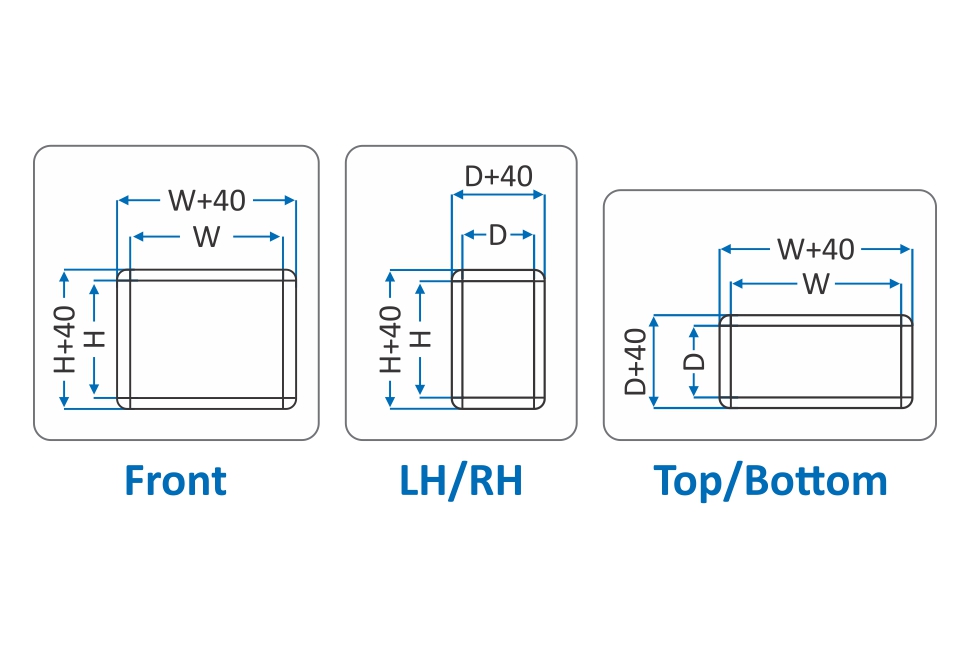

Standard Sizes
| Part Code | Size (HxWxD) in MM |
|---|---|
| SE.250.250.125 | 250Hx250Wx125D |
| SE.250.300.125 | 250H.300W.125D |
| SE.250.350.125 | 250H.350W.125D |
| SE.250.400.125 | 250H.400W.125D |
| SE.300.300.125 | 300H.300W.125D |
| SE.300.300.125 | 300H.300W.125D |
| SE.300.350.125 | 300H.350W.125D |
| SE.300.350.125 | 300H.350W.125D |
| SE.300.400.125 | 300H.400W.125D |
| SE.300.400.125 | 300H.400W.125D |
| SE.300.450.125 | 300H.450W.125D |
| SE.300.450.125 | 300H.450W.125D |
| SE.300.500.125 | 300H.500W.125D |
| SE.300.500.125 | 300H.500W.125D |
| Part Code | Size (HxWxD) in MM |
|---|---|
| SE.350.350.125 | 350H.350W.125D |
| SE.350.350.150 | 350H.350W.150D |
| SE.350.400.125 | 350H.400W.125D |
| SE.350.400.150 | 350H.400W.150D |
| SE.350.450.125 | 350H.450W.125D |
| SE.350.450.150 | 350H.450W.150D |
| SE.350.500.125 | 350H.500W.125D |
| SE.350.500.150 | 350H.500W.150D |
| SE.400.400.125 | 400H.400W.125D |
| SE.400.400.150 | 400H.400W.150D |
| SE.400.450.125 | 400H.450W.125D |
| SE.400.450.150 | 400H.450W.150D |
| SE.400.500.125 | 400H.500W.125D |
| SE.400.500.125 | 400H.500W.150D |
| Part Code | Size (HxWxD) in MM |
|---|---|
| SE.450.550.125 | 450H.350W.125D |
| SE.450.450.150 | 450H.450W.150D |
| SE.450.450.125 | 450H.450W.125D |
| SE.450.450.150 | 450H.450W.150D |
| SE.450.500.125 | 450H.500W.125D |
| SE.450.500.150 | 450H.500W.150D |
| SE.450.550.125 | 450H.550W.125D |
| SE.450.550.150 | 450H.550W.150D |
| SE.500.500.125 | 500H.500W.125D |
| SE.500.500.150 | 500H.500W.150D |
| SE.500.550.125 | 500H.550W.125D |
| SE.500.550.150 | 500H.550W.150D |
| SE.500.600.125 | 500H.600W.125D |
| SE.500.600.125 | 500H.600W.150D |
